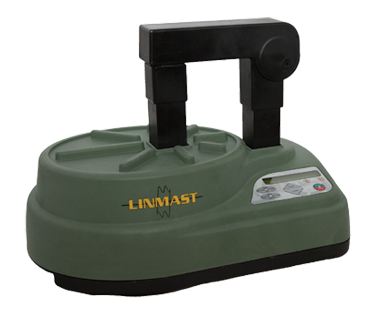

LBH45D

A portable light capacity model suitable for heating bearings and small parts up to 10kg.

Mostly used in small maintenance workshops and site work, in such industries such as automotive, small electric motors, petrol-chemical, packaging, printing, paper, building maintenance

Capacity 1.0 kVA
Duty Continuous
Voltage 110v or 220/240 V
Frequency 50/60 Hz
Max. Temp 250°C
Efficient Heat Limit 10 kg
Unit Weight 8 kg
Unit Dimensions
(l x w x h) 		310 x 210 x 230 mm
Core Dimensions - A
(Dia. over Core) 		30 x 30 mm
(Dia. 46mm)
Pole Height - B 80 mm
Pole Separation - C 65 mm
Cross Bars - D
(minimum Dia.) 		15 x 15 (22mm ø)
